MIni TV600 CNC Drilling Machine Fanuc System High Precision

Name: MIni TV600 CNC Drilling Machine Fanuc System High Precision
Brand: Li Zhun
Price: 1 USD

Quality MIni TV600 CNC Drilling Machine Fanuc System High Precision for sale

Brand Name : Li Zhun

Model Number : TV-600

Certification : SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 10000 per year

Delivery Time : 15-25 Work Days

Packaging Details : Wooden Box

Warranty : 1 Year

Condition : New

Worktable Size : 700x420mm

Maximum Load Capability : 250kg

Machine Weight : 3000kg

Control System : Mitsubishi/Fanuc

Spindle Hole Taper : BT30

T-Slots : 3x14x125mm

Spindle Speed : 20000rpm

Contact Now

Fanuc System MIni TV600 CNC Drilling Machine CNC Milling Machine

The TV-600 is a high-performance CNC drilling and tapping machining center developed by our company. It has the characteristics of high speed, high precision, high stability and high rigidity. It is designed with ultra-rigid structure and X/Y/Z axis high precision linear guide and ball screw with locking preload design, which can provide you with fast, powerful and stable machining performance, making it suitable for high precision parts machining and mold machining.This machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. The machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. It can be widely used in the automotive, machinery, instrumentation, textile, and electronic instrumentation industries with high precision and high-efficiency machining capability at a very reasonable cost.

Main Features

SIEMENS/FANUC/Mitsubishi CNC System Controller
4th/5th axes rotary table
Tool setter
Oil mist collector
High rigidity of the machine
High speed and precision spindle
Excellent chip flushing system
Direct coupling connection, transmission rigid, high precision and stability

Main Parameters

ITEM	MODELS	TV600
WORKTABLE (WIDTH*LENGTH)	mm	700*420
DISTANCE BETWEEN T SLOTS	mm	3x14x125
MAX LOAD BEARING OF WORKTABLE	kg	250
X/Y/Z AXIS TRAVEL	mm	600/400/300
X/Y/Z AXIS TRAVEL	mm	600/400/300
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	150-450
SPINDLE HOLE TAPER	-	BT30
SPINDLE SPEED RANGE	r/min	20000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	DIRECT
SPINDLE MOTOR POWER	kW	3.7/5.5( Mitsubishi)/5.5/7.5(Fanuc
X/Y/Z RAPID FEED SPEED	m/min	48/48/48(60/60/60)
MAX CUTTING FEED SPEED	mm/min	1-20000
MAX CUTTING FEED SPEED	mm/min	1-20000
TOOLS MAGAZINE CAPACITY	pcs	21


X/Y/Z POSITION ACCURACY	mm	±0.005
X/Y/Z RE-POSITION ACCURACY	mm	±0.003
MACHINE DIMENSION	mm	1930x2450x2450
MACHINE DIMENSION	mm	1930x2450x2450
MACHINE WEIGHT	kg	3000

Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

Detail drawing

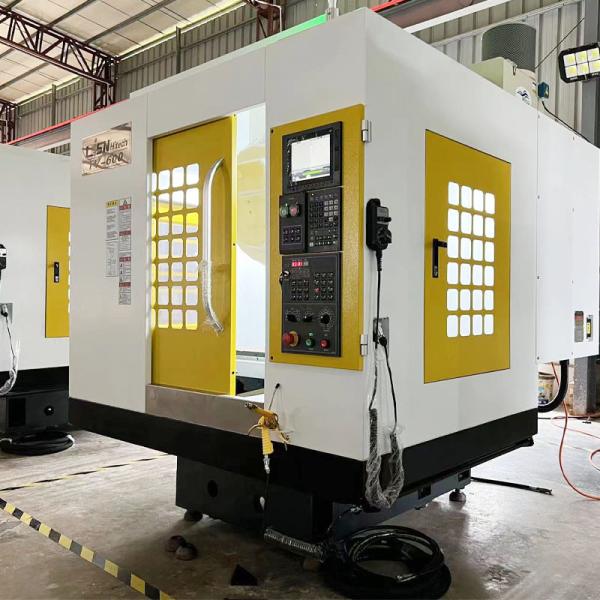

MIni TV600 CNC Drilling Machine Fanuc System High Precision

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
