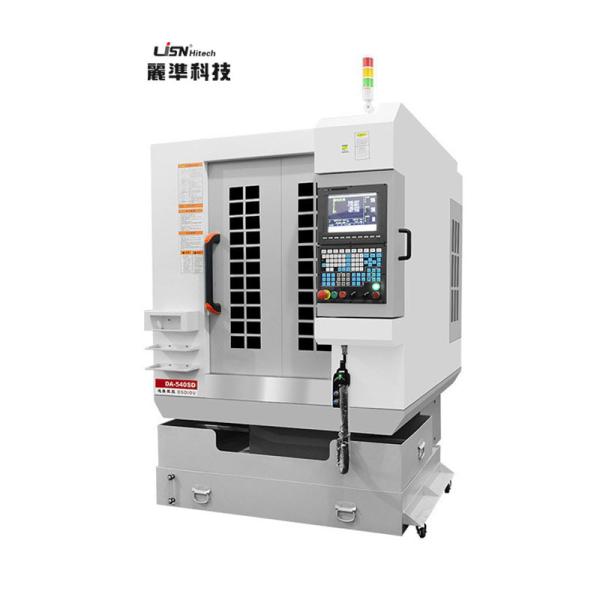

Practical 12KW CNC Engraving And Milling Machine DA540SD Multi Function

Name: Practical 12KW CNC Engraving And Milling Machine DA540SD Multi Function
Brand: Li Zhun
Price: 1 USD

Brand Name : Li Zhun

Model Number : DA-540SD

Certification : SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10000 per year

Delivery Time : 45-60 Work Days

Packaging Details : Wooden Box

Condition : New

Warranty : 1 Year

Machine Dimension : 1485*1835*1910mm

Machine Weight : 2300kg

Contact Now

High Precision CNC Engraving And Milling Machine High rigidity High Quality DA-540SD

Product Description

The DA-540SD is a high performance and precision CNC engraving and milling machine. The machine moves and feeds faster than the machining center. It equips a high speed and precision spindle and the speed of the spindle is up to 40000RPM. The worktable size of this machine is 570*500mm and its' maximum load capability is up to 100kg. This machine also equips mist spray cooling system to cool the workpiece. As a engraving and milling mahcine, it has extremely good rigididy and performance. It can be efficient, fast and accurate to complete the workpiece processing, greatly reducing the processing time and processing cost.

Main Features

Worktable size: 570*500mm
Maximum load capability: 100kg
X/Y/Z working stroke: 570*450*160mm
Spindle speed range: 40000RPM
Machine dimension: 1485*1835*1910mm
Workpiece cooling mode: Mist Spray

Main Parameters

Model	unit	DA-540SD
Worktable Size	mm	570*500
X/Y/Z Working Stroke	mm	570450160
Worktable Load Capability	kg	100
Positioning Accuracy	mm	0.008/300
Repeatability Accuracy	mm	0.005
Spindle Power	KM	6
Spindle Speed Range	RPM	40000
Tools Change form		Auto
Tools Specification		ISO25
Cutting tools number		10
Max Rapid Traverse	m/min	24
Max Cutting Feed Rate	m/min	9
Total Power	KW	12KW
Machine Weight	kg	2300kg
Machine Dimension	mm	148518351910
Workpiece Cooling Mode		Mist Spray

Product Details

FAQ

1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
